Nuvair RVK>Q325E
Turnkey Multi Diver Low Pressure Electric Driven Package.
Price on request

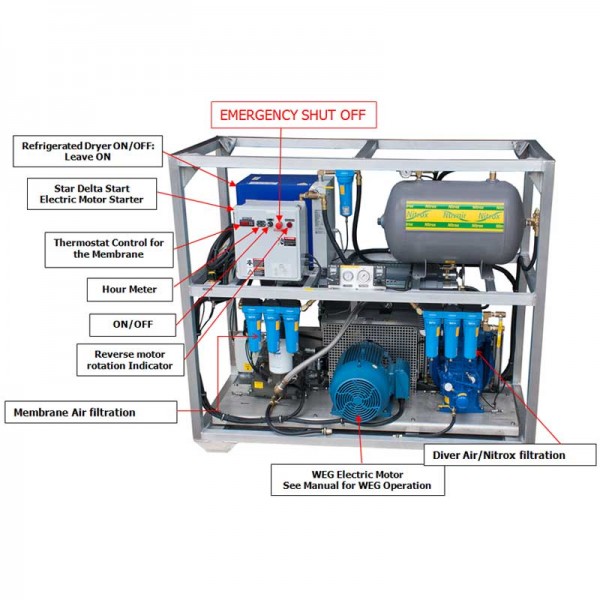

Features
- Rigid 2″ Sq. Aluminum Frame & Belt Guard With Fork Lift Slots
- Stainless Steel Compressor Mounting Plate
- Vibration Mounts Below Compressor Plates
- Two Air After coolers
- LP Air Filtration: Hankison 3 stage Series 20 air filtration on both compressors
- Auto Drains/DP Gauges
- Coalescing 1.0 micron
- Fine Polishing .01 micron
- Oil Vapor Removal .003 PPM
- Supplying Grade D Air to Membrane
- Hour Meter
- Low Oil Shut Down
- LP Dual Control Head Un-Loaders
- Electric Start
- 12 Volt Battery with Box
- 18 Amp Charging System
Membrane System
- (2) Pro O2 Analyzers, one with inline sensor
- Membrane rated up to 20cfm @ 36% O2
- Auto Thermostatic control 110/220 volt heater
- Air Intake Filter & Static Mixing Tube
- Synthetic Food-grade Compressor Lubricant for nitrox breathing applications
- Mix Accurate to Within 1/10th %
Options
- One 60 Gallon volume tank

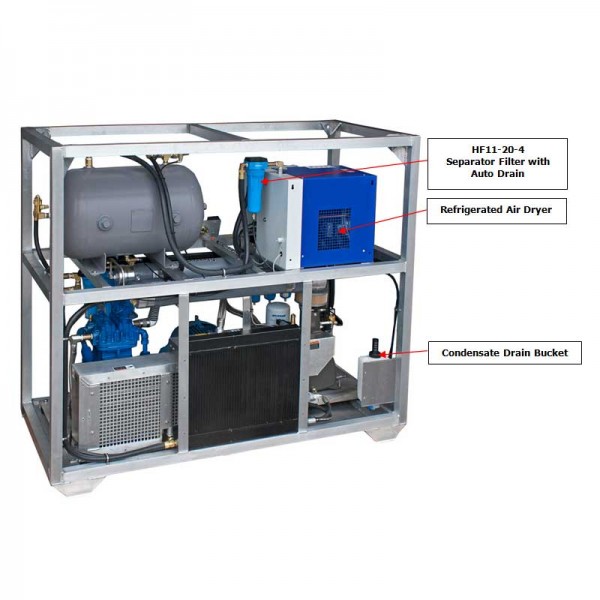

- Refrigerated Dryer (pictured)
- Low/High O2% Shut Down and Alarm
- CO Analyzer with Alarm and Shutdown
- CO2 Analyzer with Alarm
Nitrox RVK>Q325E Specifications
Model# 7069E-RVK-325
- Motor: WEG
- Motor Power: 25 hp
- Maximum Operating Presssure: 175 PSI
- Rotair RVK 8-20: Air 50 CFM @ 175 PSI (1460 L/min)
- Quincy 325: Air 18 CFM @ 175 PSI (509 L/min)
- Combined Air Produced: 68 CFM 175 PSI (1940 L/min)
- Nitrox Produced: 40% at 16 CFM 175 PSI (420 L/min) – 36% at 20 CFM 175 PSI (560 L/min)
- Air Tank: One 30 Gal Steel Reciver
- Lubrication: Pressure
- Air Quality: Grade “D”
- Dimensions (HxWxD): 76″x35″x66″ (193x89x168cm)
- Weight: 1460lbs. (662kg)
