Quincy 5120 Deutz Diesel

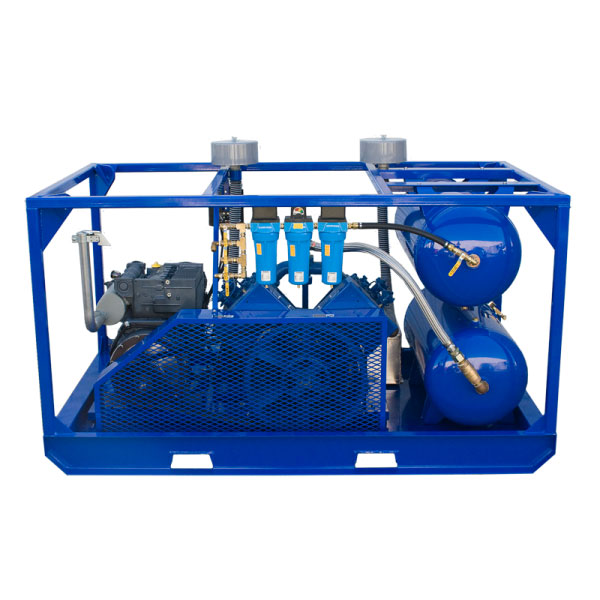

Breathing air and /or Industrial air the Quincy 5120 diesel compressor package rated for 95 CFM @ 175 PSI. Proven dependability and an industry work horse this is the standard in many dive companies word wide. Our framed package includes a 5120 compressor block with head unloaders, a Deutz diesel motor, fuel tank, electric start, breathing air filtration, dual 60 gallon tanks mounted in powder coated steel frame with fork lift slots and 4 point lifting eyes.



Price on request

SKU: Q5120-DEUTZ Categories: ,


Features

  • Air Cooled Duetz F3L2011 Diesel Engine
  • Hayes PTO and Bearing Block
  • Full Instrument Panel
  • 15 Gallon Fuel Tank
  • Air Cooler
  • (2) ASME Rated 60 Gallon Volume Tank
  • Hankinson Filtration to 0.003 PPM Oil Vapor
  • 4 Diver Manifold
  • Simple to Operate, Reliable and Versatile
  • Heavy Duty Powder Coated Offshore Frame with Vibration Isolated Inner Frame
  • Primary Fuel Filter

Options

  • Low Pressure Regulator for Down Stream Pressure
  • CO and/or O2 Analyzers
  • Audible and Visual High Temperature Alarm
  • Low Oil Shutdown
  • Canvas Cover
  • Air Start or 12 Volt Electric Start
  • Low Air Pressure Alarm
  • Low pressure Auto Switch to Emergency Back-Up

Specifications

  • Charging Rate: 95 CFM (2690 L/Min)
  • Diesel Engine Power: 46.2 HP @ 2800 RPM
  • Max Operating Pressure: 200 PSI (14 Bar)
  • RPM: 1040
  • Number of Stages: 2
  • Lubrication: Pressure Lubrication
  • Dimensions (LxWxH): 96 x 55 x 53 in (244 x 140 x 135 cm)
  • Weight: 3100 lbs (1406 kg)
  • Air Quality: Grade “D”
