Quincy 5120 25 HP Weg Framed In

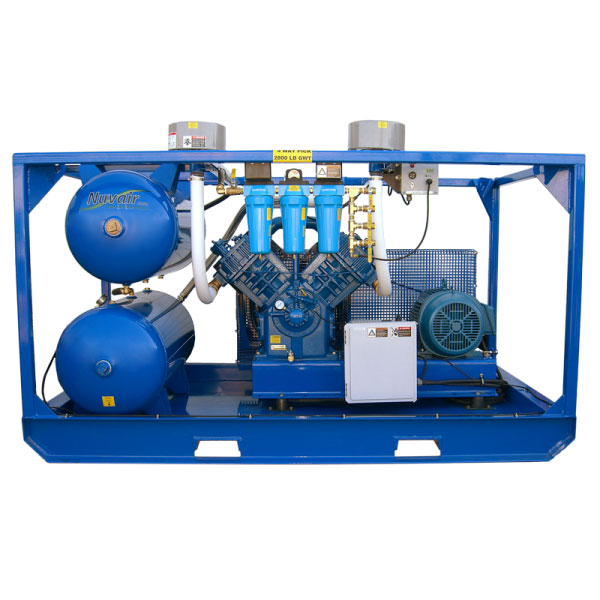

Breathing air and /or Industrial air the Quincy 5120 electric framed in package provides 90 CFM @ 175 PSI. Years of proven dependability as an industry work horse this is the standard in many dive companies and industrial uses word wide. Our electric package includes a 5120 compressor block with head unloaders and Weg TEFC 25HP Motor with NEMA 4 Starter Box and belt guard mounted in a powder coated steel frame with dual 60 gallon tanks, fork lift slots and 4 point lifting eyes.



Price on request

SKU: Q5120-25HP-WEG Categories: ,


Features

  • High Quality Reliable Electric Motor
  • Low Oil Carry Over Compressor Rings
  • LVD Control
  • Air Cooler
  • Two ASME Rated 60 Gallon Volume Tanks
  • Simple to Operate, Reliable and Versatile

Options

  • Low Pressure Regulator for Down Stream Pressure
  • CO and/or O2 Analyzers
  • Audible and Visual High Temperature Alarm
  • Air Filtration
  • Larger Volume Tanks

Specifications

  • Charging Rate: 90 CFM @ 175 PSI (2560 L/Min @ 12 Bar)
  • Engine: Electric E3 50/60 Hz
  • Engine Power: 25 HP (18.6 kW)
  • Max Operating Pressure: 200 PSI
  • RPM: 951
  • Number of Stages: 2
  • Lubrication: Pressure Lubrication
  • Dimensions (LxWxH): 96 x 55 x 53 in (244 x 140 x 135 cm)
  • Weight: 2900 lbs (1315 kg)
  • Air Quality: Grade “D”
