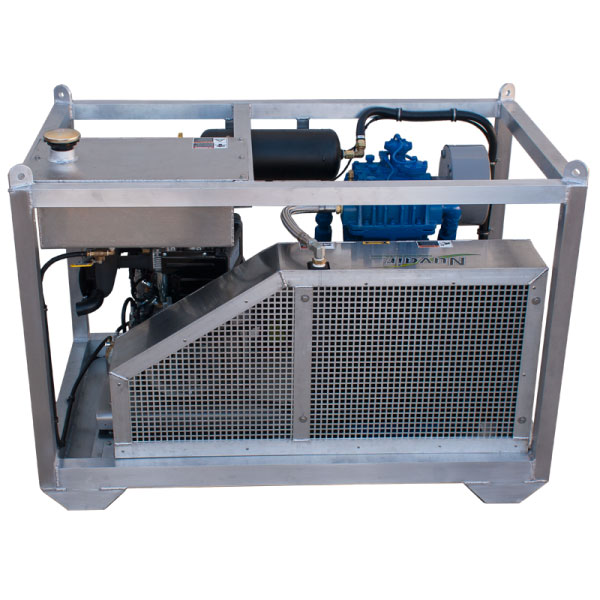

Quincy 370 with 28.5 hp Kohler Diesel Engine

Industry leader Quincy 370 Low Pressure Compressor, loadless start with head unloaders. The Kohler 28.5hp diesel engine features electric start, Tach/Hour meter, battery with battery box, 10 gallon fuel tank with sight gauge and filter.



Price on request

SKU: Q-370D Categories: ,


This package has a 3 gallon surge/manifold tank and ball valve output, over pressure valve, drain valve, large air after cooler, check valve, gate valves and plumbing. The frame is made with 6061 aluminum, lifting eyes, forklift slots and enclosed bottom, steel powder coated compressor plate. All equipment is inset; compressor and diesel have independent vibration absorption mounts and are mounted on a steel plate. This package requires a volume tank for use, check out our volume tanks here.

Features

  • Reliable Electric Motor
  • High Quality Two Stage Splash Lubricated Pump
  • LV Head Unloader – Loadless Starts
  • Simple to Operate, Reliable and Versatile
  • 4 Point Lifting Eyes

Options

  • Honda Gas or Electric Motor in any volt or phase
  • Low Pressure Regulator for Down Stream Pressure
  • CO, CO2, Moisture, and O2 Analyzers
  • Audible and Visual High Temperature Alarm
  • Low oil shut down
  • High Temp Shut down
  • Breathing Air Filtration
  • ASME rated 30 Gallon or larger Volume Tank
  • Stainless Steel Compressor Plate

Specifications

  • Charging Rate: 49 CFM @ 175 PSI (187 L/Min @12 Bar)
  • Engine: 28.5 Kohler Diesel
  • Max Operating Pressure: 175 PSI (250PSI on Request)
  • Number of Stages: 2
  • Dimensions Framed Model (HxWxD): 44″x60″x35″(112x153x89cm)
  • Weight: 1030 lbs (467 kg)
  • Lubrication: Pressure Lubrication
  • Air Quality: Grade “D” Breathing Air (with Breathing Air Filtration Option)
