Quincy 325 with 10HP Yanmar Diesel

Quincy 325, pressure lubricated compressor, loadless start with head unloaders.


Price on request

SKU: Q-325DY Categories: ,

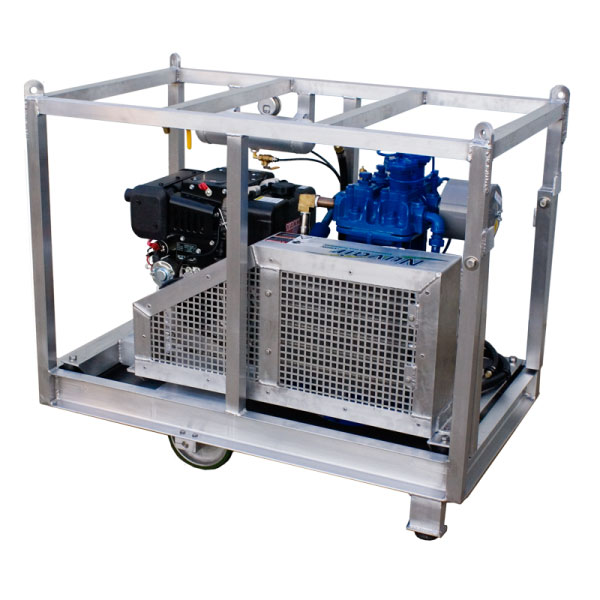

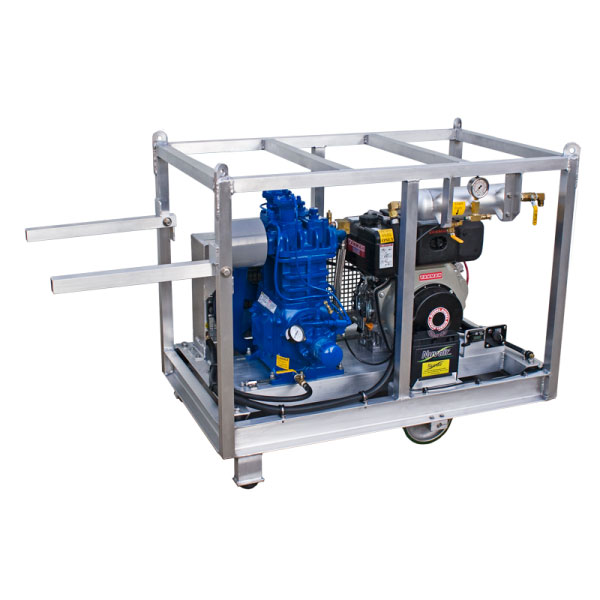

This package has a 1 gallon surge/manifold tank, ball valve output, over pressure valve, drain valve, large air after cooler, check valve, gate valves and plumbing. The Yanmar 10hp diesel engine features key electric start or pull start, Tach/Hour meter and battery box. This frame is made with 6061 aluminum and has an enclosed bottom, four point lifting eyes, handles and wheels making it easy to wheel on and off the job. All equipment is inset, compressor and diesel are mounted on an aluminum plate and have independent vibration absorption mounts. This package requires a volume tank for use, check out our volume tanks here.


  • Reliable Diesel Motor
  • High Quality Two Stage Splash Lubricated Pump
  • LV Head Unloader – Loadless Starts
  • Simple to Operate, Reliable and Versatile


  • Honda Gas or Kohler Diesel
  • Low Pressure Regulator for Down Stream Pressure
  • Pro CO Analyzer with LP Alarm (9621.5-LB)
  • Pro CO Analyzer with LP + High Temp Alarm (9621)
  • Low oil shut down (6059)
  • High Temp Shut down (6056)
  • Breathing Air Filtration (6063.5-2DM-AN)
  • ASME rated 30 Gallon or larger Volume Tank (KT-Tank-60G)


  • Charging Rate: 19 CFM @ 175 PSI (528 L/Min @ 12 Bar)
  • Engine: 10 HP Yanmar Diesel
  • Max Operating Pressure: 175 PSI
  • Number of Stages: 2
  • Dimensions Framed Model (HxWxD): 38″x48″x29″(96x122x74cm)
  • Weight: 545 lbs (247 kg)
  • Lubrication: Pressure Lubrication
  • Air Quality: Grade “D” Breathing Air (with Breathing Air Filtration Option)
