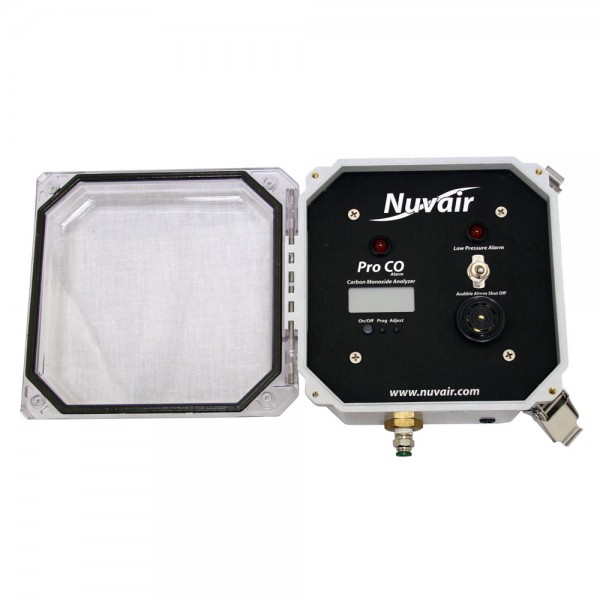

Pro CO (Carbon Monoxide) Analyzer with Low Pressure Alarm
Price on request
The Pro CO Analyzer with Low Pressure Alarm is made for the surface supply working diver that is required to have a carbon monoxide analyzer and low pressure alarm. The Carbon Monoxide Analyzer measures carbon monoxide (CO) levels in gases in the range of 0 to 100 parts per million (ppm). It can be used to measure the CO content in gas mixes that may be contaminated due to the introduction of CO from internal combustion engines or other devices where CO is a byproduct. The low pressure alarm is connected to the volume tank and supplies a loud alarm if the air pressure drops below the set pressure. The Water-Resistant Case includes a Digital Display and controls that are environmentally sealed. The Analyzer uses a Flow Adapter Cap and Flexible tubing to deliver sample gas to the Sensor. Pressurized gases must be regulated to avoid damage to the analyzer.
Replacement Sensor
Carbon Monoxide Sensor Replacement 9501-300 & 9501-50
Features
- Compressor Mounted Instrument
- LCD Display
- On/Off Switch
- Rugged Weather Proof Housing
- Requires Very Little Maintenance
- Low Power Consumption
- Long Life Electrochemical Sensor
- Accurate to +/- 1%
- Battery Test Function
- Easy To Operate, Reliable and Accurate
- Audible and Visual Alarms
- Pressure switch factory set @ 90psi (other settings available)
Specifications
- Display Accuracy: +/- 5% at Constant Temperature and Pressure
- Sensor Type: Electrochemical
- Expected Cell Life (Room Air & Temp): 60 Months
- Range: 0-50 ppm Carbon Monoxide
- Response Time: less than 50 seconds to 90% value
- Operating Temperature: 41° to 104°F (5° to 40°C)
Will work outside this range with decreased accuracy - Storage Temperature: 14° to 140° F (-10° to 60°C)
- Operating Humidity: 15 to 90% RH, Non-Condensing
- Power: (2) 9 Volt Battery or 110/230V power option
* All specifications are at ambient / sea level, 77 Degrees F (25 Degrees C)
