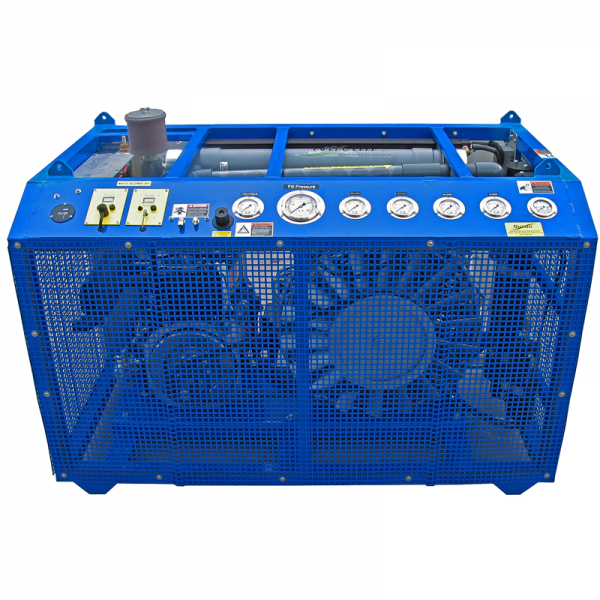

Nuvair Commercial HP Nitrox Generator

Gas, Diesel or Electric powered Nitrox systems that supply high pressure air or Nitrox up to 40% O2.


Price on request


The advantage of this package is it can normally be used with a compressor that you already own. Use a Low Pressure compressor to provide the membrane with a feed air supply and generate HP Nitrox. The frames are built with 6061 Marine Grade Aluminum and the compressor plate is made with 316 stainless steel. All systems come with large air and oil coolers for better filtration and longer filter life.


  • Nuvair Nitrox Membrane System
  • Pump Air or Nitrox up to 40% Oxygen
  • Coltri MCH36 block
  • 4 Cylinder, 4 stage, Air Cooled
  • Interstage Pressure Gauges
  • 3 Large Condensate Seperators
  • Large SS Interstage Cooling Tubes
  • Low Pressure Oil Pump with Filter & Oil Level Sight Gauge and Oil Pressure Gauge
  • Low Oil Shutdown Switch
  • Loadless, Electric Start
  • 12 V Charging System with 12 V Battery
  • Hankison Filtration to .003 ppm Oil Vapor
  • Auto Condensate Drains
  • High Temp Switch set at 350 degrees
  • Visual CO/Moisture Indicator
  • Hour Meter
  • Dual Filter Filtration (60,000 Cu. Ft.)
  • Simple to Operate, Reliable and Versatile
  • Heavy Duty Marine Grade Square Tube Aluminum Offshore Frame
    with Vibration Isolated Inner Frame Stainless Steel Motor Plate
  • Lifting Eyes, Fork Lift Slots



  • Automatic Pressure Shutdown
  • Presec Electronic Moisture Monitor
  • Powder Coated Frame
  • Upgraded Filtration (90,000 Cu. Ft.)
  • Remote Fill Panel
  • Large Base Mounted Fuel Tank
  • High CO% Alarm or Shut Down
  • Honda Gas or Kohler Diesel Engine
  • Electric Motor 220-440 V, 50/60Hz
