Champion R30 Electric

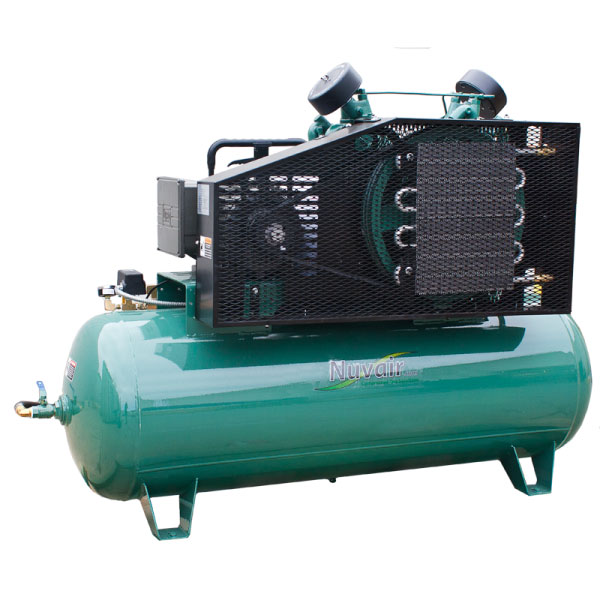

Champion R30 continuous duty pump with electric motor mounted on a 120 gallon tank or in a frame. Our framed models offer a variety of designs to meet your needs. The basic package is a pump and electric motor on ASME rated 120 Gallon Tank.



Price on request

SKU: champion-r30-electric Categories: ,


Features

  • Reliable Diesel Motor
  • High Quality Two Stage Splash Lubricated Pump
  • Centrifugal Unloader – Loadless Starts
  • Simple to Operate, Reliable and Versatile

Options

  • Custom Frame with Volume Tank Separate
  • Honda Gas or Diesel Engine
  • Low Pressure Regulator for Down Stream Pressure
  • Air after cooler
  • CO and/or O2 Analyzers
  • Audible and Visual High Temperature Alarm
  • Low oil shut down
  • High Temp Shut down
  • Breathing Air Filtration
  • ASME rated 30 Gallon or larger Volume Tank

Specifications

  • Charging Rate: 35 or 49 CFM @ 175 PSI (991 or 1387L/Min @ 12 Bar)
  • Motor: 10 or 15 HP 3 Phase Electric Motor
  • Max Operating Pressure: 175 PSI
  • Number of Stages: 2
  • Dimensions Tank Model (HxWxD): 56″x73″x24″(142x185x61cm)
  • Weight: 890lbs (404kg)
  • Lubrication: Splash Lubrication
  • Air Quality: Grade “D” Breathing Air (with Breathing Air Filtration Option)
