Champion LP R15 Diesel 30 Gallon Tank Mount

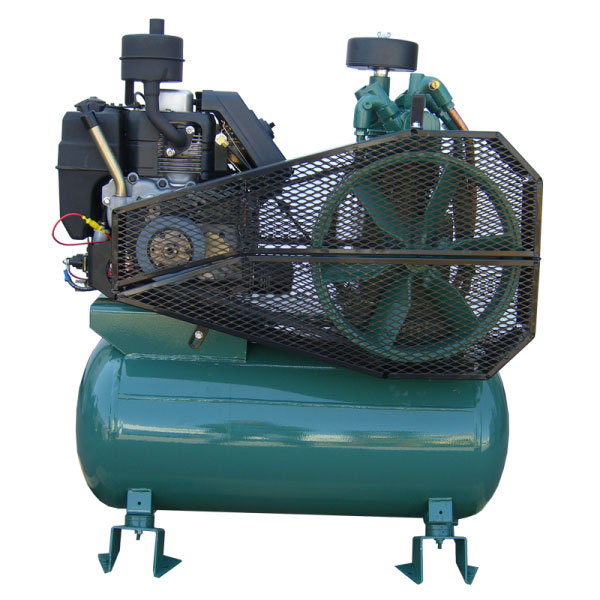

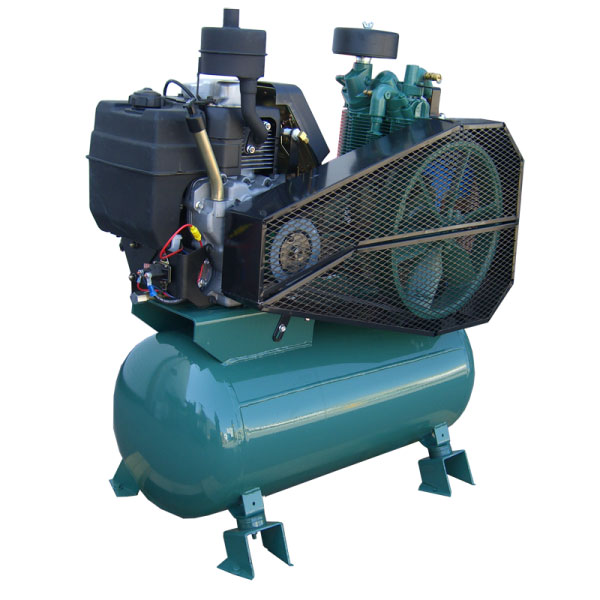

Champion R15 continuous duty pump with electric start Kohler diesel mounted on a 30 gallon tank. At 20 CFM this basic continuous duty breathing air and industrial air compressor package bridges the gap between light and medium duty compressors.



Price on request

SKU: champion-lp-r15-diesel-tank-mount Categories: ,


This compressor package requires breathing air filtration to be dive ready.

Features

  • Reliable Diesel Motor
  • High Quality Two Stage Splash Lubricated Pump
  • Centrifugal Unloader – Loadless Starts
  • Simple to Operate, Reliable and Versatile

Options

  • Low Pressure Regulator for Down Stream Pressure
  • Air after cooler
  • CO and/or O2 Analyzers
  • Audible and Visual High Temperature Alarm
  • Low oil shut down
  • High Temp Shut down
  • Breathing Air Filtration
  • Larger Volume Tank ASME rated

Specifications

  • Charging Rate: 20 CFM @ 175 PSI (538 L/Min @12 Bar)
  • Engine: 10 HP Kohler Diesel
  • Max Operating Pressure: 175 PSI
  • Number of Stages: 2
  • Dimensions Tank Mount Model (HxWxD): 46″x32″x38″(116x81x96cm)
  • Weight: 500 lbs (226 kg)
  • Lubrication: Splash Lubrication
  • Air Quality: Grade “D” Breathing Air (with Breathing Air Filtration Option)
  • Tank: ASME rated 30 Gallon Volume Tank
